Rotating Shaft Measurements Transmitted Wirelessly

Rotating Shafts: Single Channel Measurement Telemetry Applications

Rotating Shaft Measurements Transmitted Wirelessly

Single channel telemetry systems are designed to transmit measurements off of rotating shafts, and can be applied in a wide variety of applications. Whether as a part of prototype testing, performance optimization testing, acceptance testing, or as part of a control systems in a product or manufacturing process, Accumetrics' single channel wireless telemetry systems are a durable alternative to slip rings and in-line torque transducers. They can help measure strain, torque, RTD temperature, and voltage, on rotating shafts and provide torsional vibration monitoring.


To learn more, click on the application areas listed below:

Agriculture - Industrial - Automotive - Aerospace - Marine
Power Generation - Railway



Agriculture

Agricultural Equipment Torque Measurements

Continuously monitor power take off (PTO) torque in the field to determine the power delivered to the PTO shaft. Use these real-world physical results to prove out theoretical designs and improve power efficiency and fuel economy for agricultural machinery. Make torque measurements on tractors, combine harvesters, or other agricultural equipment.


Industrial

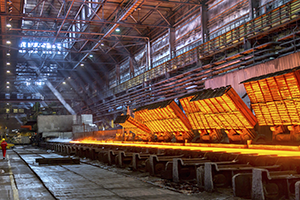

Industrial Drive Process Monitoring

Rolling mill shaft measurements: Continuously monitor torque or temperature on a rolling mills' main drive for optimization of the milling process. Achieve maximum throughput without damaging motors and shafts through this active process feedback and track statistical trends for predictive maintenance.

    Whitepaper:




    Automotive

    Automotive

    Automotive and other Vehicle Measurements

    Directly measure actual dynomometer-like torque data on axles and driveshafts in vehicles, including automobiles, ATVs, and racing vehicles. Simultaneously display the data in vehicle and record for future processing with standard data acquisition systems. Fast sampling allows fast phenomena such as piston firing, gear mesh, and wheel skip/driveshaft wind-up torque spikes to be captured and analyzed.

    • Monitor torque on clutch assembly
    • Torque and power measurements on driveshafts and half-shafts
    • Non-contact torque or strain measurements on vehicle drivetrain
    • Support NVH development: Correlate passenger compartment moan noise to driveshaft torque
    • Determine torque spikes (for example, during piston firing or clutch engagement), horsepower, fuel efficiency, and power consumption
    • Provide live data to understand engine performance
    • Accessory pulley torque measurements
    • Temperature and stress monitoring on braking components
    Whitepapers:




    Aerospace

    Aerospace High RPM Shaft Torque Measurement



    • Measure blade strain or shaft torque in flight
    • Make force measurements on aircraft propellers
    • Stress and temperature testing on aircraft wheel and brake systems
    • Torque measurements on aircraft engines during take-off
    Whitepaper:




    Marine

    Marine Torque Monitoring in High EMI Environments



    • Torque and power measurements on propulsion shafts
    • Propeller shaft vibration monitoring
    Whitepaper:




    Power Generation

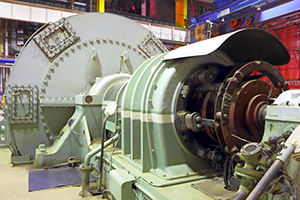

    Power Generation Telemetry Measurements



    • Generator shaft measurements
    • Wind turbine shaft torsion and bending moment measurement




    Railway

    Railway Telemetry Measurements



    • Rail wheel or streetcar wheel measurements: understand stress levels under a variety of operating conditions
    • Torque, power, strain, and temperature measurements on railway wheel set, drive shafts, gear shafts, and engine shaft
