Induction Powered Telemetry System | AT-4500

The AT-4500 EasyApp system is an induction powered 16 bit rotor telemetry system. This system is easily installed, without any shaft modification, using an aramid fiber strap. Using wireless technology, sensor data can be directly acquired for broadly varied applications -- from vehicle drive shaft torque to large generator excitation voltage.

Highlights
  • Induction powered
  • Easy installation using aramid fiber straps
  • A single transmitter can be reused on various shaft sizes, by only purchasing a new strap
  • Remote shunt calibration
  • Environmentally rugged transmitter
  • High data integrity and noise immunity
Specs
  • Number of channels: 1
  • Digital resolution: 16 bits
  • Bandwidth: DC to 2 kHz (Optional: 10 kHz)
  • 26,484 samples/second
  • Inputs:strain/torque, temperature (RTD), voltage
  • Outputs: 0 +/- 10V analog signal

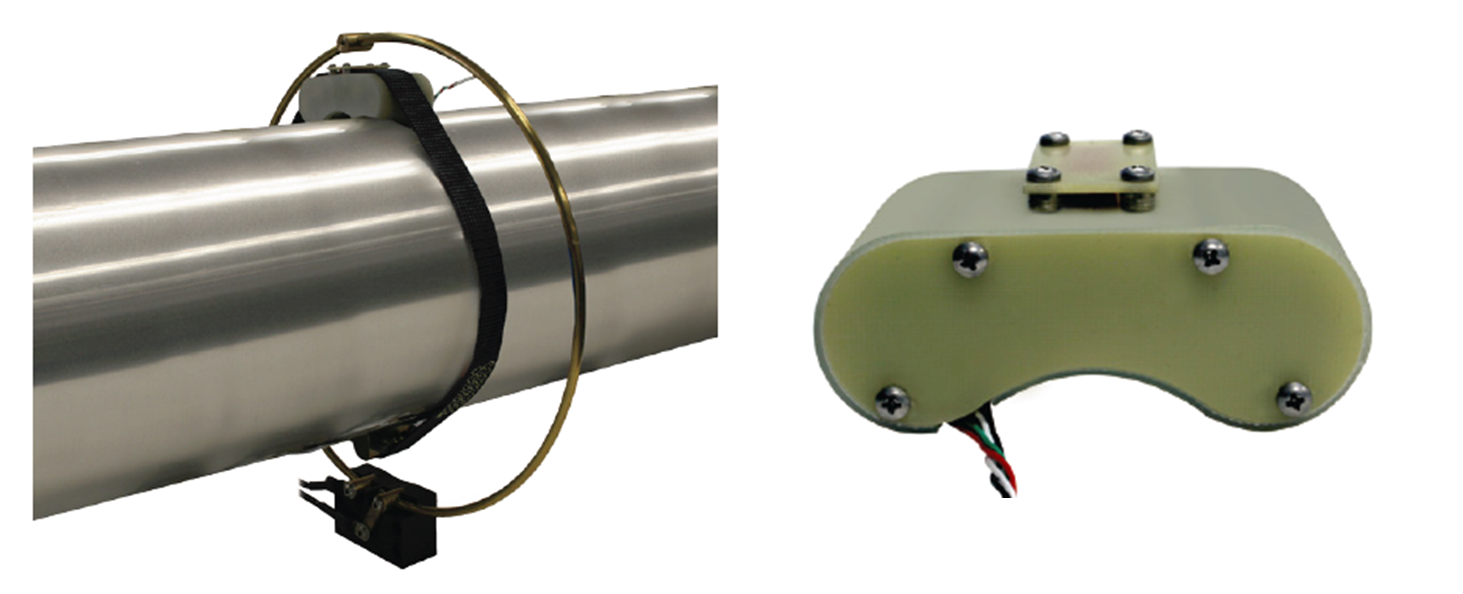

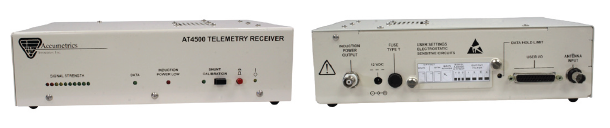

AT-4500 TransmitterReceiver (front/back)
